China manufacturer & factory supplier for NMRV  in Novokuznetsk Russian Federation  Series 90 Degree Worm Gear Transmission Gearbox With high quality best price & service

As a outcome, we have become a extensive manufacturer in the movement and control subject supplying an substantial lineup of goods with excellent toughness, atmosphere-friendliness, and quality.Having gathered precious knowledge in cooperating with foreign buyers, a specialised supplier of a complete selection of chains, sprockets, gears, gear racks, V-belts, couplings and reducers, pto shaft, agricultural gearboxes….

Overview

Fast Particulars

Relevant Industries:

Constructing Content Stores, Production Plant, Machinery Restore Shops, Farms, Design works , Meals & Beverage Shops

Item name:

ZLYJ Equipment Reducer for Plastic extruder

Colour:

Blue,Grey,Or Custom-made

helical-worm gearboxes Lower sounds, sturdy and adaptable.

Guarantee:

1 Year

Software:
PTO Adapters To avoid possible connectivity problems, you may want to think about a PTO Adapter for your tractor. The PTO adapter extends the relationship to the implement, providing extra area for the PTO shaft to flip with out touching the Arm Weldment or other areas of your tractor or the implement.

Foodstuff ,Plastic, Convery, Equipment, Feed, Mining and so on

Certificate:

ISO9001 , CE

Mounting Position:

Horizontal (Foot Mounted, Shaft Mounted)

Packing:

Picket Box

Voltage:

24V

Bearing:

C&U, NAK, NSK,SKF

Screw diameter:

forty five-220

Source Capability

Supply Capability:
a thousand Piece/Parts for each Thirty day period

Packaging & Supply

Packaging Particulars
Plywood case
Port
Ningbo,Shanghai
Lead Time
:
Quantity(Boxes) 1 – ten >10
Est. Time(days) 15 To be negotiated

Online Customization

Attributes
Higher modular style, biomimetic floor with owned intellectual house proper.
Adopt German worm hob to approach the worm wheel.
With the particular gear geometry, it will get high torque, efficiency and lengthy daily life circle.

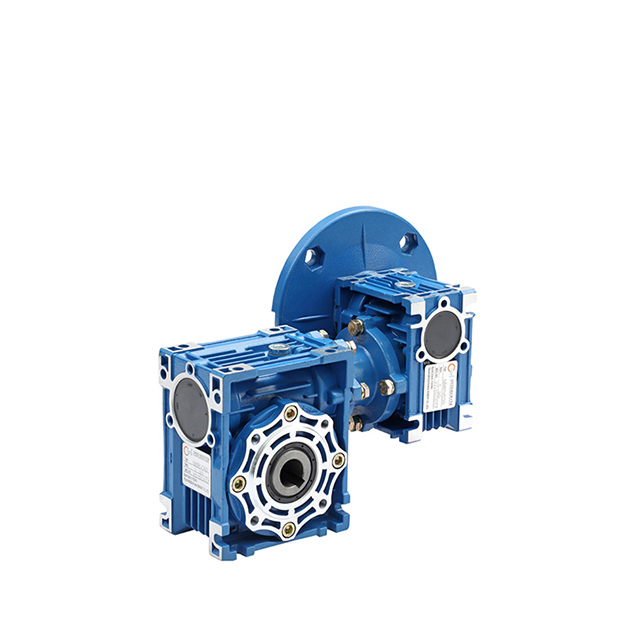

It can accomplish the immediate mix for two sets of gearbox.
Mounting manner: foot mounted, flange mounted, torque arm mounted.
Output shaft: solid shaft, hollow shaft.

Elements:
one. Housing: Die-solid Aluminium Alloy Gearbox (RV025~RV090)Solid Iron Gearbox (RV110~RV150)
two. Worm Wheel: We Ever-Electrical power Group 1 of the most significant transmission suppliers in the worldarable Tin Bronze Alloy, Aluminum Bronze Alloy
3. Worm Shaft: 20Cr Metal, carburizing, quenching, grinding, floor hardness fifty six-62HRC, .3-.5mm remaining carburized layer right after exact grinding
four. Enter Configurations:
Equipped with Electrical Motors (AC Motor, Brake Motor, DC Motor, Servo Motor)
IEC-normalized Motor Flange
Strong Shaft Input
Worm Shaft Tail Extension Input
5. Output Configurations:
Keyed Hollow Shaft Output
Hollow Shaft with Output Flange
Plug-in Solid Shaft Output
6. Spare Elements: Worm Shaft Tail Extension, Solitary Output Shaft, Double Output Shaft, Output Flange, Torque Arm, Dust Cover
seven. Gearbox Painting:
Aluminium Alloy Gearbox:
Following Shot Blasting, Anticorrosion Treatment and Phosphating, Paint with the Colour of RAL 5010 Gentian Blue or RAL 7035 Mild Grey
Forged Iron Gearbox:
Following Portray with Pink Antirust Paint, Paint with the Coloration of RAL 5010 Gentian Blue
Designs:
Hollow Shaft Input with IEC-normalized Motor Flange
RV025~RV150
Solid Shaft Enter
RV025~RV150
Attributes:
1. High quality aluminum alloy equipment box, light fat and not rust
two. 2 optional worm wheel supplies: Tin bronze or aluminum bronze alloy
three. Common parts and very versatile for shaft configurations and motor flange interface
4. Several optional mounting options
five. Reduced sound, High efficiency in warmth dissipation



Designs
Rated Power
Rated Ratio
Input Hole Dia.
Input Shaft Dia.
Output Hole Dia.
Output Shaft Dia.
RV025
.06KW~.12KW
five~sixty
Φ9
Φ9
Φ11
Φ11
RV030
.06KW~.25KW
five~eighty
Φ9(Φ11)
Φ9
Φ14
Φ14
RV040
.09KW~.55KW
5~a hundred
Φ9(Φ11,Φ14)
Φ11
Φ18(Φ19)
Φ18
RV050
.12KW~1.5The organization masking 88,000 sq. meters, has sophisticated tools and sturdy technological power, this kind of as the numerical control equipment instruments and machining centers, CAD/CAM system, industrial robotic and many others. KW
5~one hundred
Φ11(Φ14,Φ19)
Φ14
Φ25(Φ24)
Φ25
RV063
.18KW~2.2KW
7.5~one hundred
Φ14(Φ19,Φ24)
Φ19
Φ25(Φ28)
Φ25
RV075
.25KW~4.0KW
7.5~a hundred
Φ14(Φ19,Φ24,Φ28)
Φ24
Φ28(Φ35)
Φ28
RV090
.37KW~4.0KW
seven.5~a hundred
Φ19(Φ24,Φ28)
Φ24
Φ35(Φ38)
Φ35
RV110
.55KW~7.5KW
7.5~100
Φ19(Φ24,Φ28,Φ38)
Φ28
Φ42
Φ42
RV130
.75KW~7.5KW
seven.5~one hundred
Φ24(Φ28,Φ38)
Φ30
Φ45
Φ45
RV150
2.2KW~15KW
seven.5~100
Φ28(Φ38,Φ42)
Φ35
Φ50
Φ50

Ratio: 5, 7.5, ten, fifteen, twenty, twenty five, thirty, 40, fifty, 60, 80, 100
Installation:
Flange Mounted
Foot Mounted
Torque Arm Mounted
Lubrication:
Grease Lubrication
Oil-bathtub and Splash Lubrication
Cooling:
Natural CoolingQ: Are you trading firm or maker ?
A: We At any time-Energy Group 1 of the most significant transmission suppliers in the world are factory.

Q: How long is your shipping and delivery time?
A: Generally it is 5-ten times if the goods are in inventory. or it is 15-20 times if the merchandise are not in stock.

Q: Can we get 1 laptop of each and every product for top quality tests?
A: Of course, we are glad to acknowledge trial get for high quality screening.

Q: What is your conditions of payment ?
A: Payment=1000USD, thirty% T/T in advance, harmony before shippment.
If you have other question, freely to contact us,you should.
